MAGNIFICATION RANGE
4-16x
TUBE DIAMETER
30mm
OBJECTIVE LENS DIAMETER
44mm
EXIT PUPIL
13.5-3.3mm
EYE RELIEF (Inches)
3.7
FIELD OF VIEW
@100yds:
26.2-6.55ft
CLICK VALUE
1/4 MOA
(15 MOA / REV)
1/10 MRAD
(6 MRAD / REV)
ELEVATION ADJ. RANGE
80 MOA
23.3 MRAD

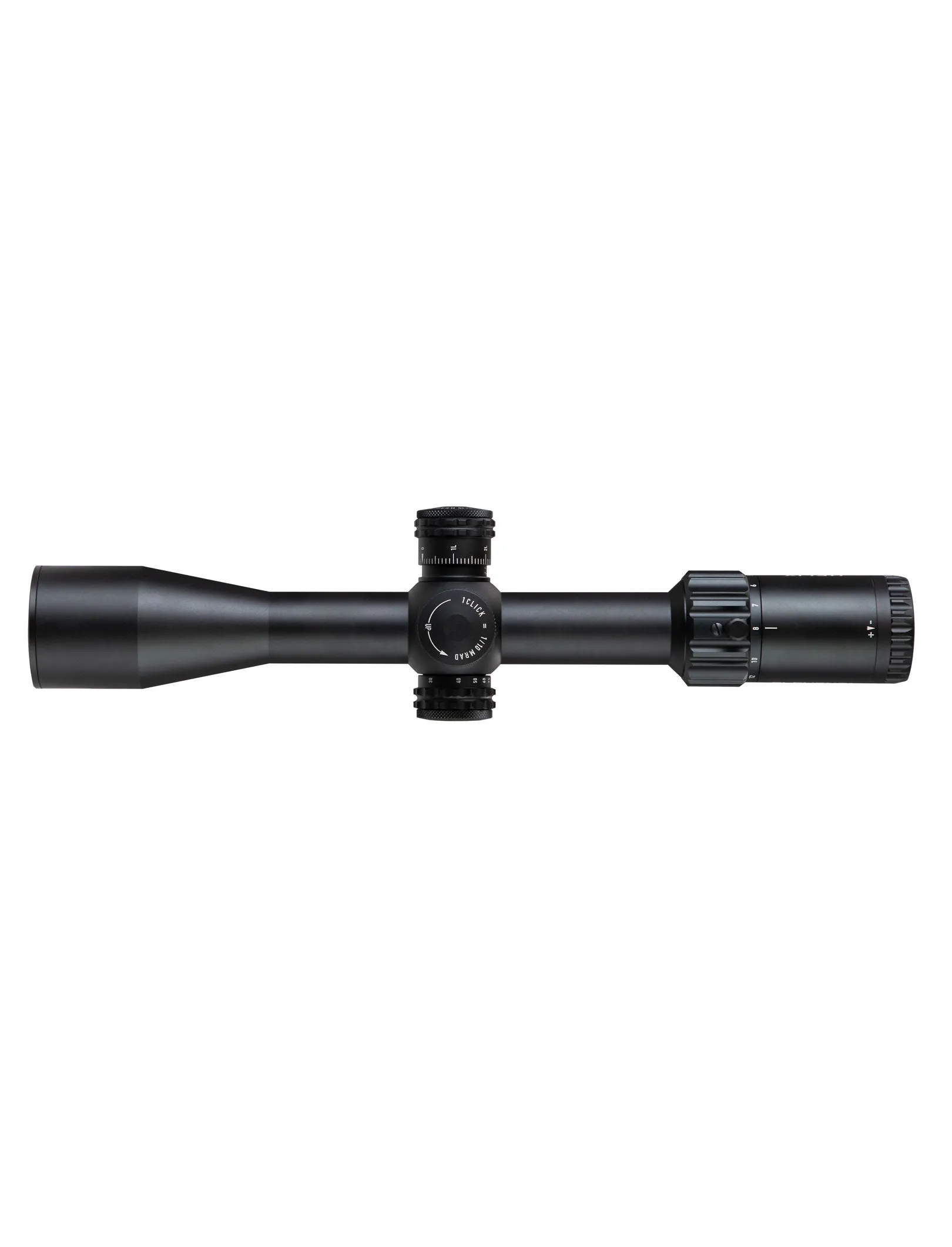

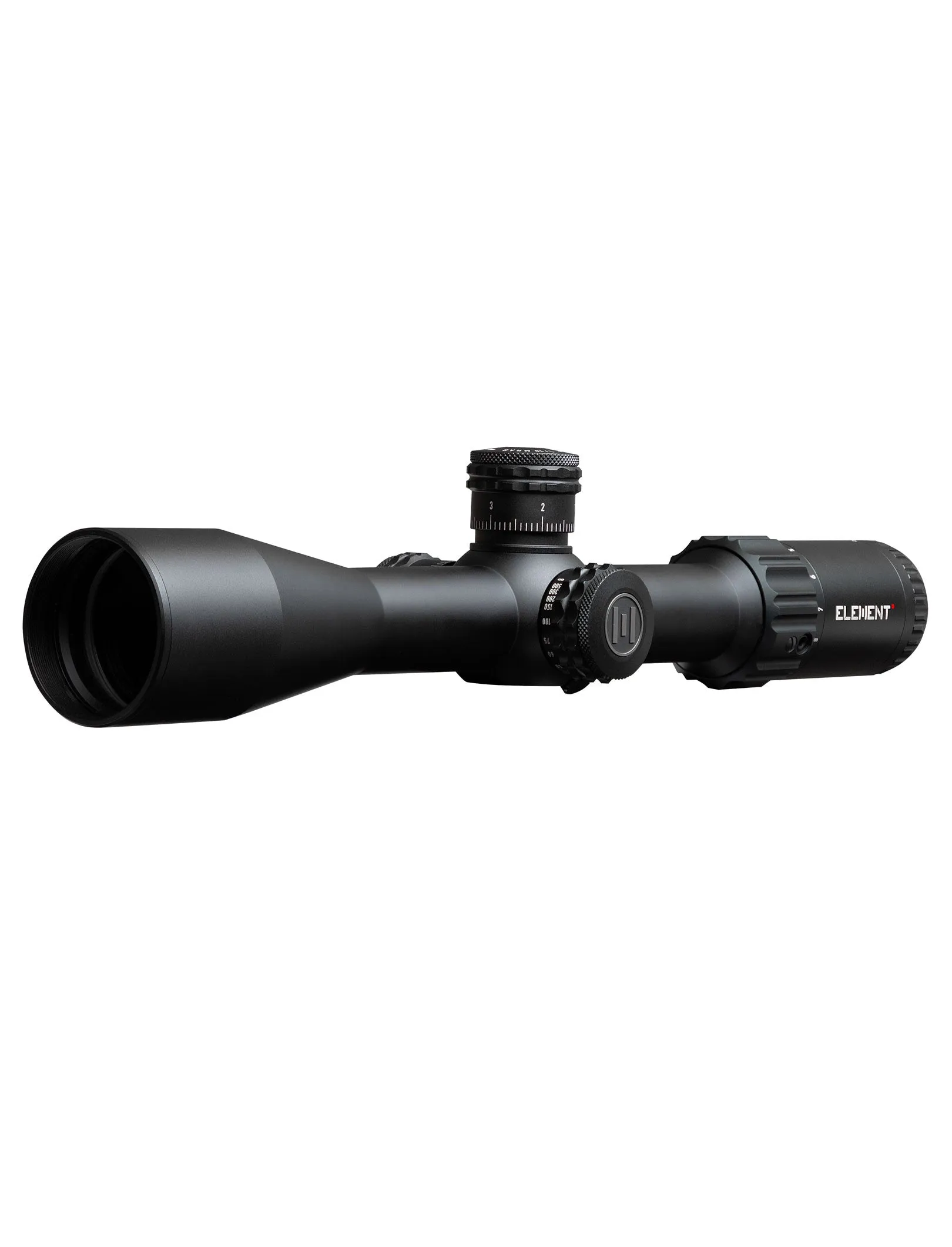

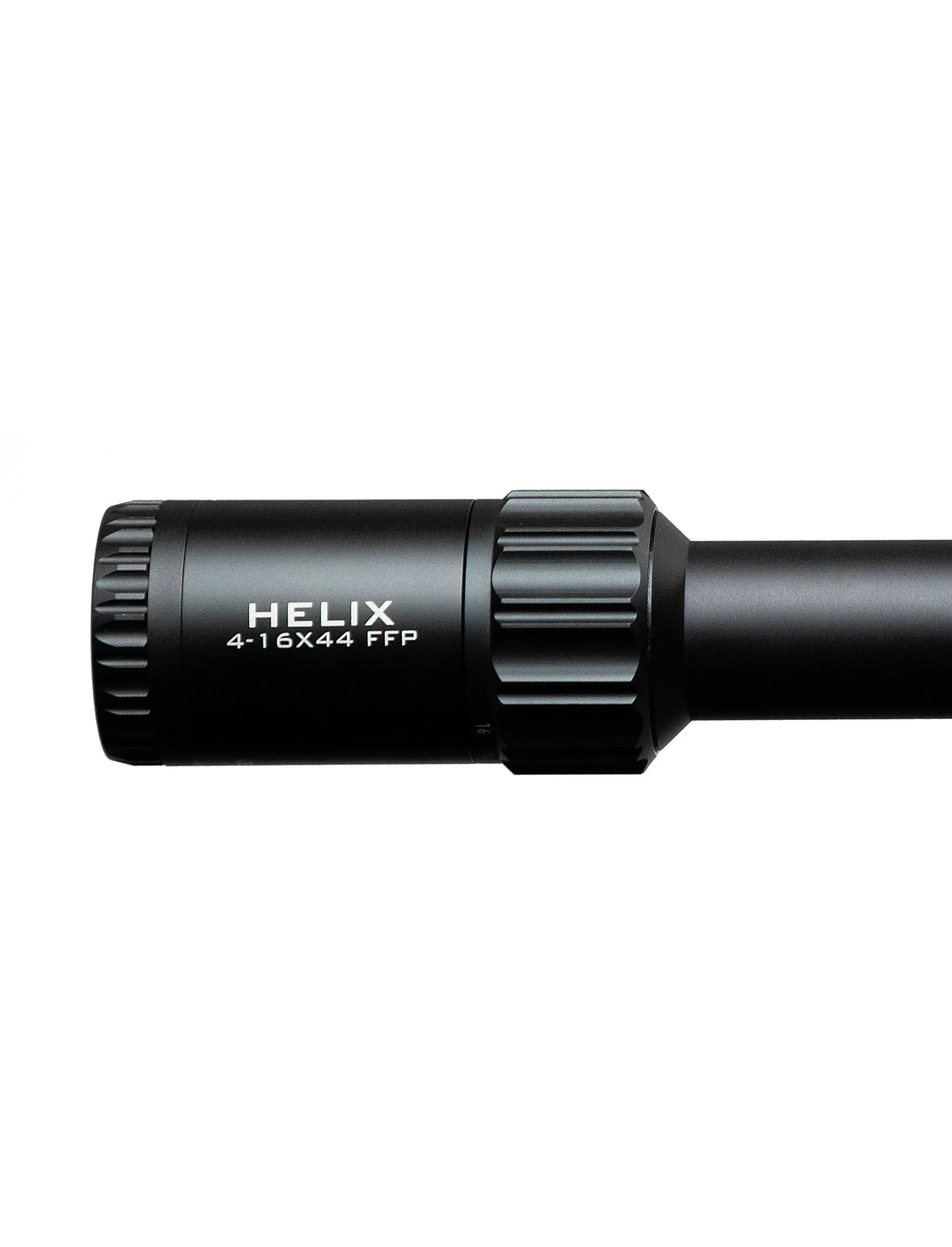

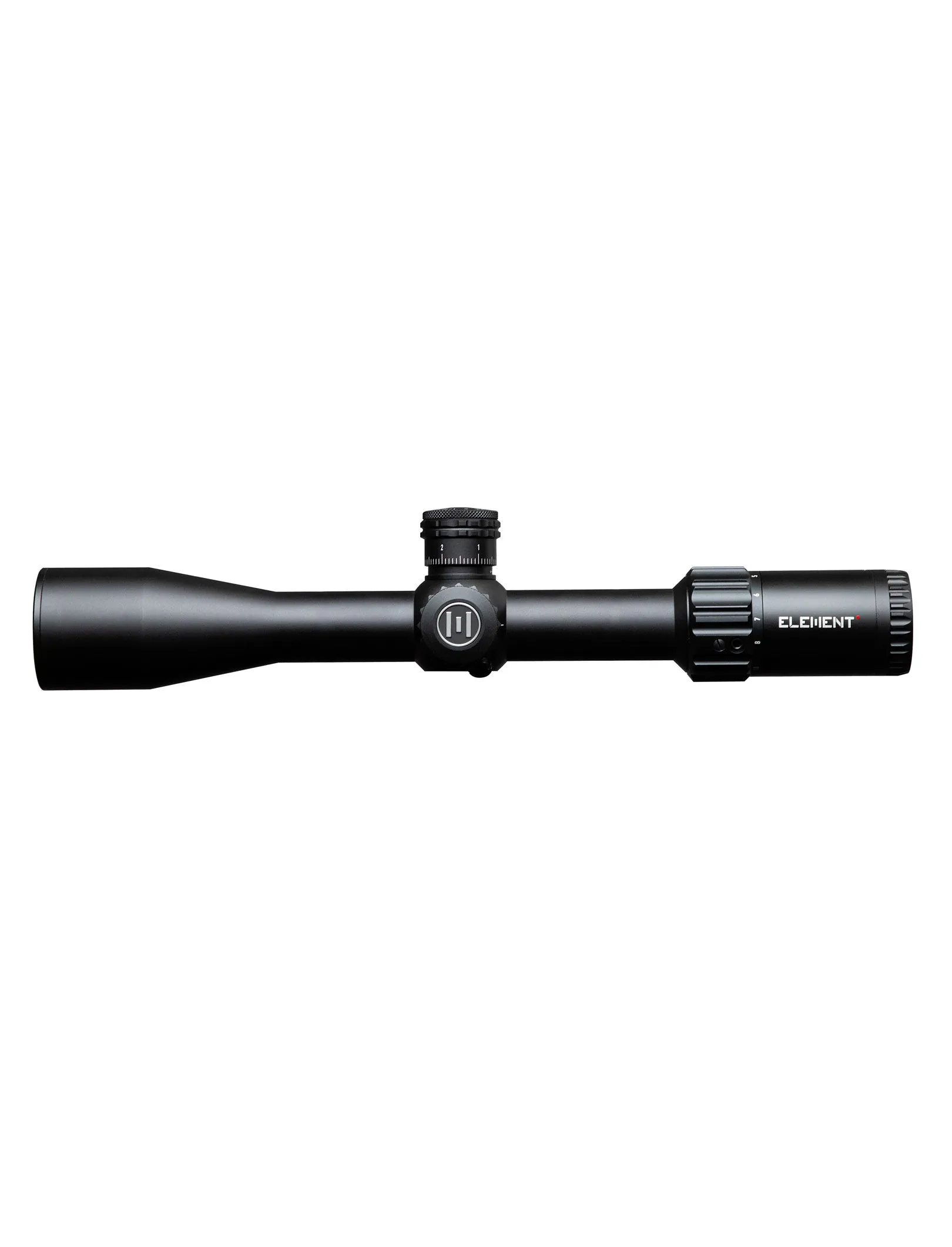

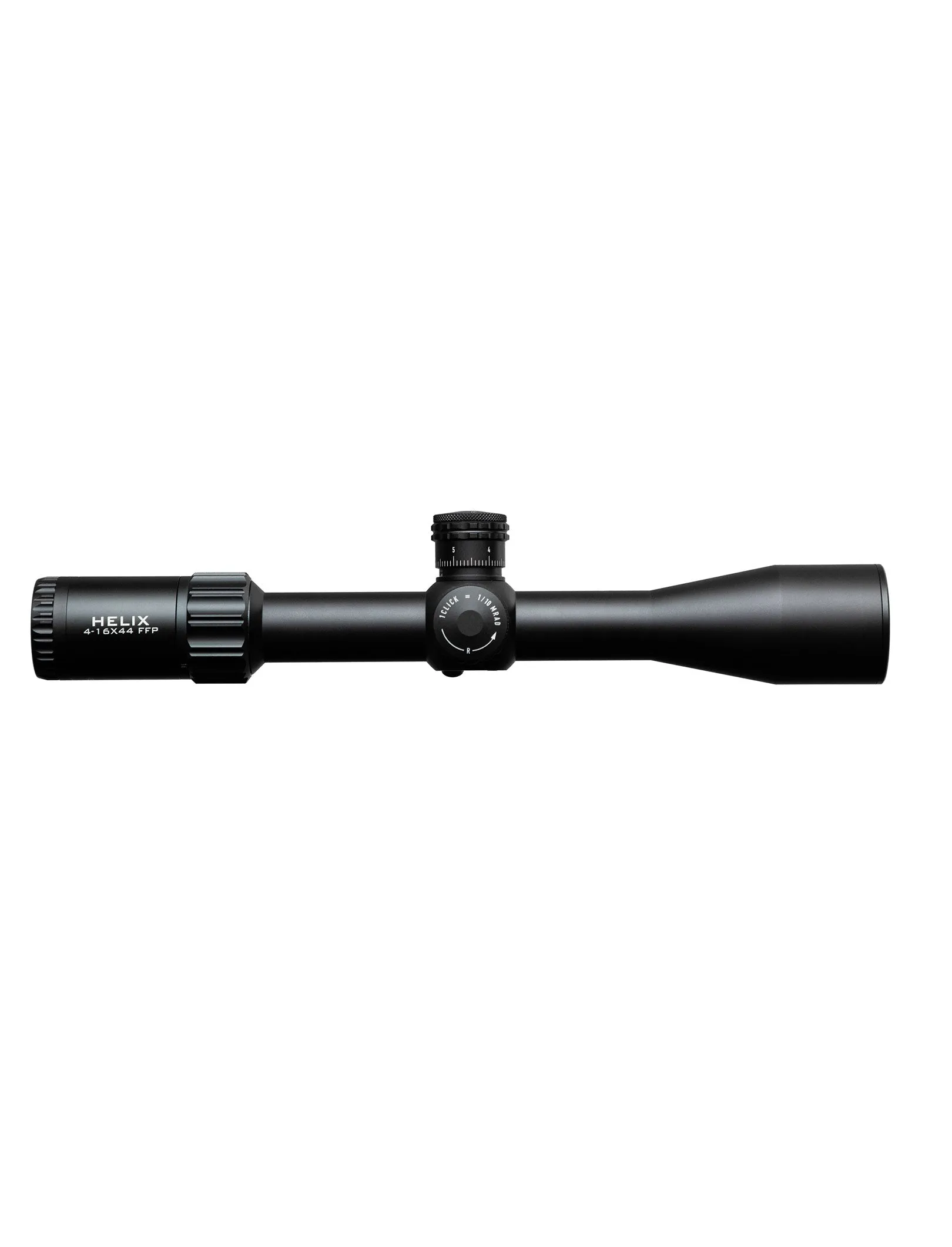

The Helix 4-16×44 FFP from Element Optics offers all the brilliant features and rugged reliability that the 6-24×50 does, but with a distinct advantage: This is the lightest, most compact scope Element has made to date!
WINDAGE ADJ. RANGE
45 MOA
13.1 MRAD
MINIMUM PARALLAX
15 YDS
15 METERS
LENGTH
14.2 Inches
360 mm
WEIGHT
23.8oz
675gr
